JW Diesel Hammer
D80
Hammer Weight38,923 lbs
Maximum Energy196,804 ft-lbs
Common Leader Size42" or 48"
Recommended Max Pile Weight
Steel72,000 lbs
Concrete54,000 lbs
Technical Document Downloads:
Features and BenefitsJuWei -52 Series · View brochure
Configure Your Quote
D80 Trip Configuration
Which trip configuration would you like PIE to quote?
Lead Guide Selection
What lead guide size do you need?
The standard size for the D80 is 36/37". You may also select any larger guide size.
Hammer Added to Quote Cart
Do you need a drive cap?
If yes, we’ll take you directly to the Drive Caps catalog so you can add the appropriate system to the same quote.
Single Acting Diesel Impact Hammer -52 Series
D80 Diesel Hammer Specifications
Fuel Settings — Estimates
| Setting | Energy per Blow (ft-lb) | Energy per Blow (kNm) |
|---|---|---|
| 4 (est.) | 196,804 | 266.83 |
| 3 (est.) | 173,091 | 234.68 |
| 2 (est.) | 149,902 | 203.24 |
| 1 (est.) | 126,190 | 171.09 |
Estimates only, not JuWei ratings. APE D80-42 setting proportions mapped to JuWei’s 171.09–266.83 kNm range; endpoint mapping is assumed. Do not use for operation or bearing/drivability calculations. JuWei overall rate: 36–45 blows/min; setting-specific rates are not supplied.
Standard or Hydraulic Trip with Power UnitsLead Guides Included
All Parts Reverse-CompatibleWith all major brands
Imperial
- Energy per Blow
- 126,190–196,804 ft-lb
- Blows Per Minute
- 36–45
- Ram Weight
- 17,637 lb
- Hammer Weight (Includes Trip Device)
- 38,923 lb
- Hammer Weight (Without Trip Device)
- 37,269 lb
- Trip Device Weight
- 1,653 lb
- Diesel Fuel Tank Capacity
- 40.95 US gal
- Lube Tank Capacity
- 8.45 US gal
- Fuel Consumption
- 6.60 US gal/hr
- Oil Consumption
- 0.77 US gal/hr
- Hammer Length
- 283.5 in
- Hammer Width
- 35.0 in
Metric
- Energy per Blow
- 171.09–266.83 kNm
- Blows Per Minute
- 36–45
- Ram Weight
- 8,000 kg
- Hammer Weight (Includes Trip Device)
- 17,655 kg
- Hammer Weight (Without Trip Device)
- 16,905 kg
- Trip Device Weight
- 750 kg
- Diesel Fuel Tank Capacity
- 155 L
- Lube Tank Capacity
- 32 L
- Fuel Consumption
- 25 L/hr
- Oil Consumption
- 2.9 L/hr
- Hammer Length
- 7,200 mm
- Hammer Width
- 890 mm
U-Leader Information
Minimum Size: 36 inches
Most Common Size: 42" or 48"
Specification Basis
JuWei lists one maximum pile weight, not separate steel and concrete ratings. Final selection requires review of pile, soil, capacity and drivability. Stroke and anvil specifications are not supplied in the chart; confirm with PIE.
Bearing Chart

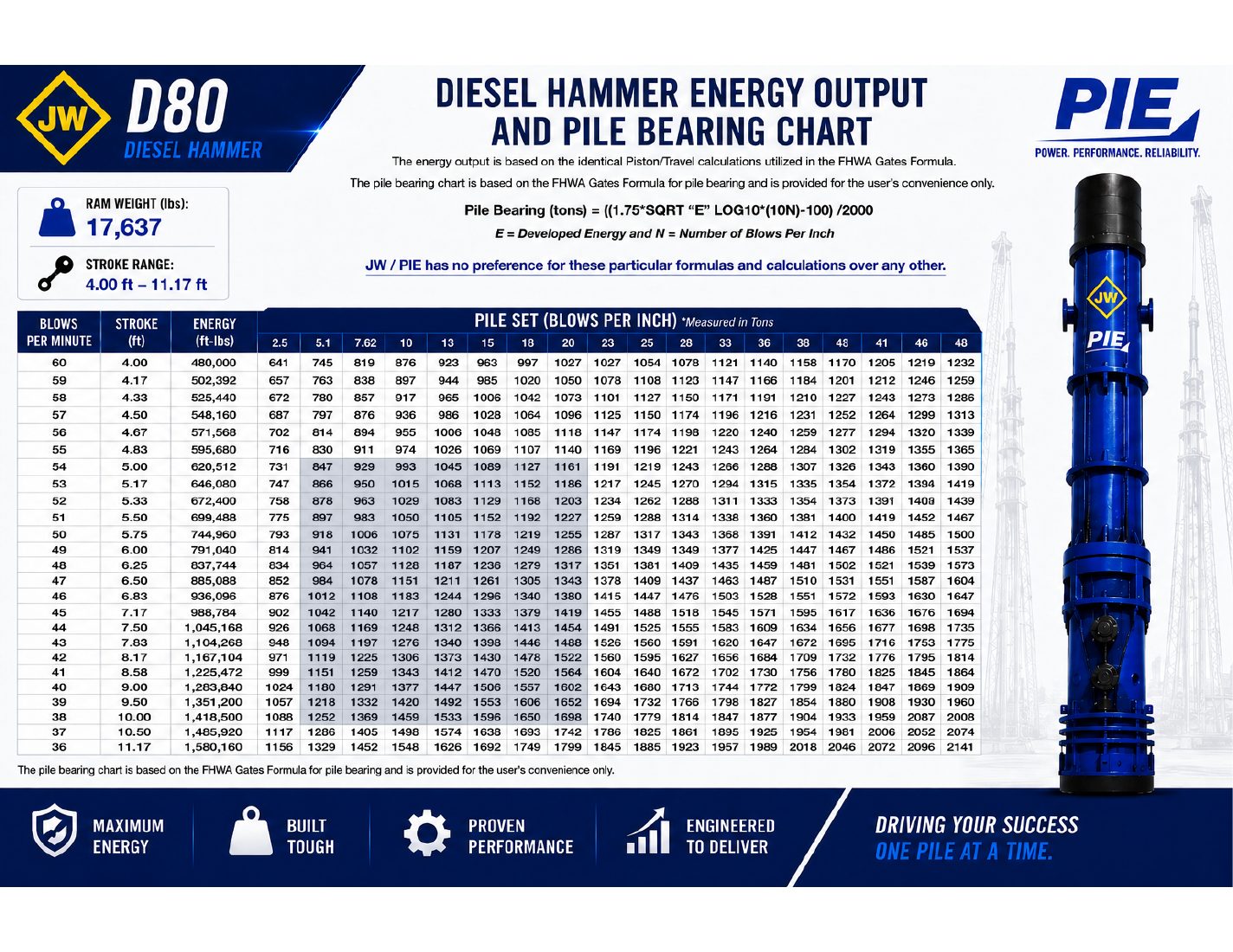

D80 Bearing Capacity Chart
Legacy reference only: not revalidated against the current JuWei energy ratings. Do not use for design or acceptance; request a verified chart from PIE.
Open Bearing Chart PDF →
