Pile Driving Leaders
Modular leader systems for crane-suspended and marine pile-driving applications.
Pile Driving Leader Systems
PIE supplies modular swinging and off-shore leader systems in standard guide sizes. We also engineer and fabricate custom leader configurations for unique equipment, site, and application requirements.
Modular Crane-Suspended Leaders

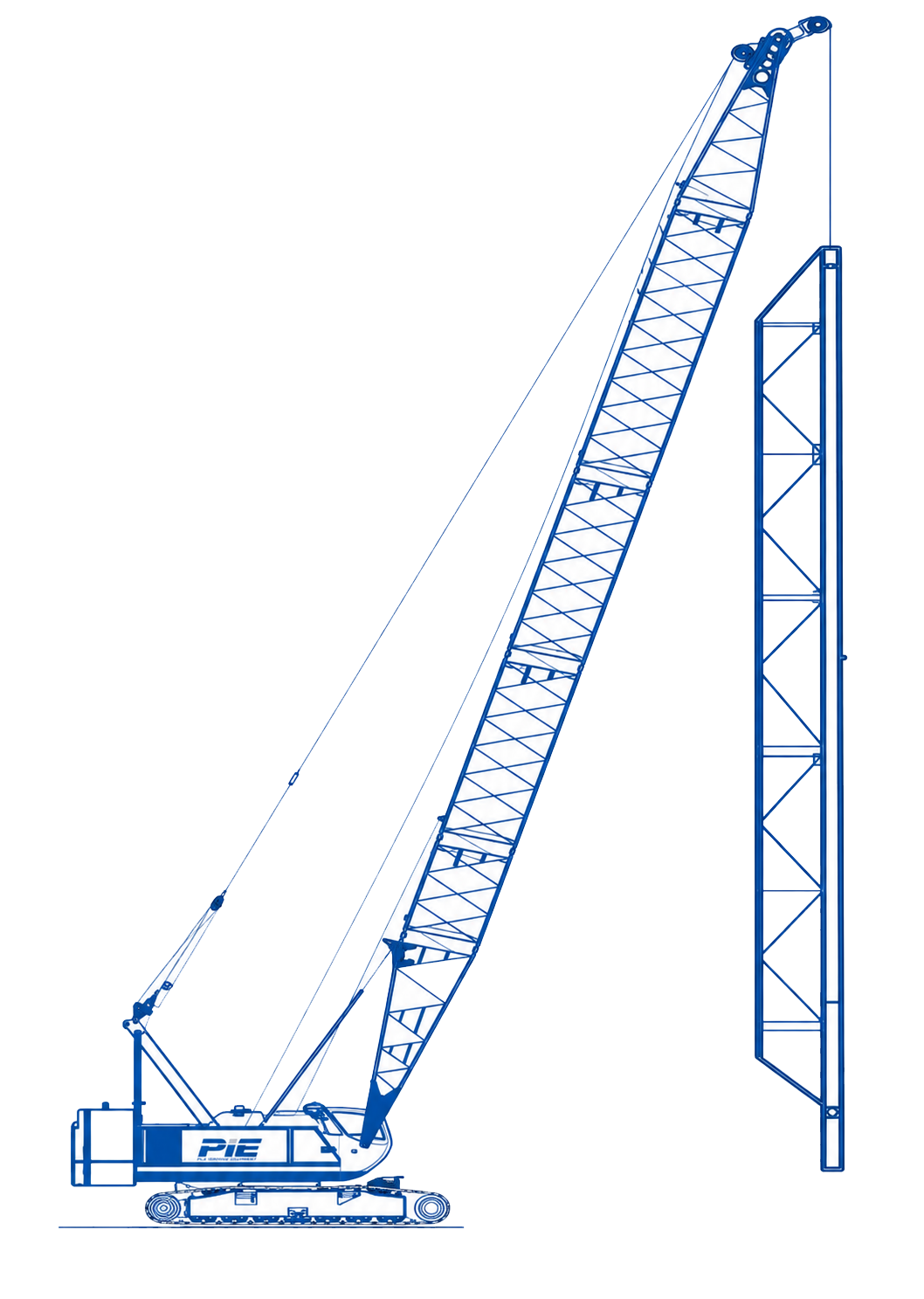

Swinging Leads
Lead Size 21"
- 20' Tapered Top
- 2,200 lb
- 40' Tapered Top
- 4,300 lb
- 4' Stabber
- 500 lb
- 10' Intermediate
- 1,400 lb
- 20' Intermediate
- 2,700 lb
- 40' Intermediate
- 4,800 lb
Lead Size 26"
- 20' Tapered Top
- 2,200 lb
- 40' Tapered Top
- 4,700 lb
- 4' Stabber
- 500 lb
- 10' Intermediate
- 1,400 lb
- 20' Intermediate
- 2,800 lb
- 40' Intermediate
- 5,200 lb
Lead Size 32"
- 20' Tapered Top
- 2,200 lb
- 40' Tapered Top
- 4,900 lb
- 4' Stabber
- 500 lb
- 10' Intermediate
- 1,500 lb
- 20' Intermediate
- 2,800 lb
- 40' Intermediate
- 5,400 lb
Lead Size 37"
- 20' Tapered Top
- 2,300 lb
- 40' Tapered Top
- 5,100 lb
- 4' Stabber
- 500 lb
- 10' Intermediate
- 1,500 lb
- 20' Intermediate
- 2,900 lb
- 40' Intermediate
- 5,600 lb
Lead Size 43"
- 20' Tapered Top
- 2,400 lb
- 40' Tapered Top
- 5,300 lb
- 4' Stabber
- 600 lb
- 10' Intermediate
- 1,600 lb
- 20' Intermediate
- 3,000 lb
- 40' Intermediate
- 5,900 lb
Lead Size 54"
- 20' Tapered Top
- 4,700 lb
- 40' Tapered Top
- 9,900 lb
- 4' Stabber
- 900 lb
- 10' Intermediate
- 2,900 lb
- 20' Intermediate
- 5,900 lb
- 40' Intermediate
- 11,000 lb
Marine Leader Systems

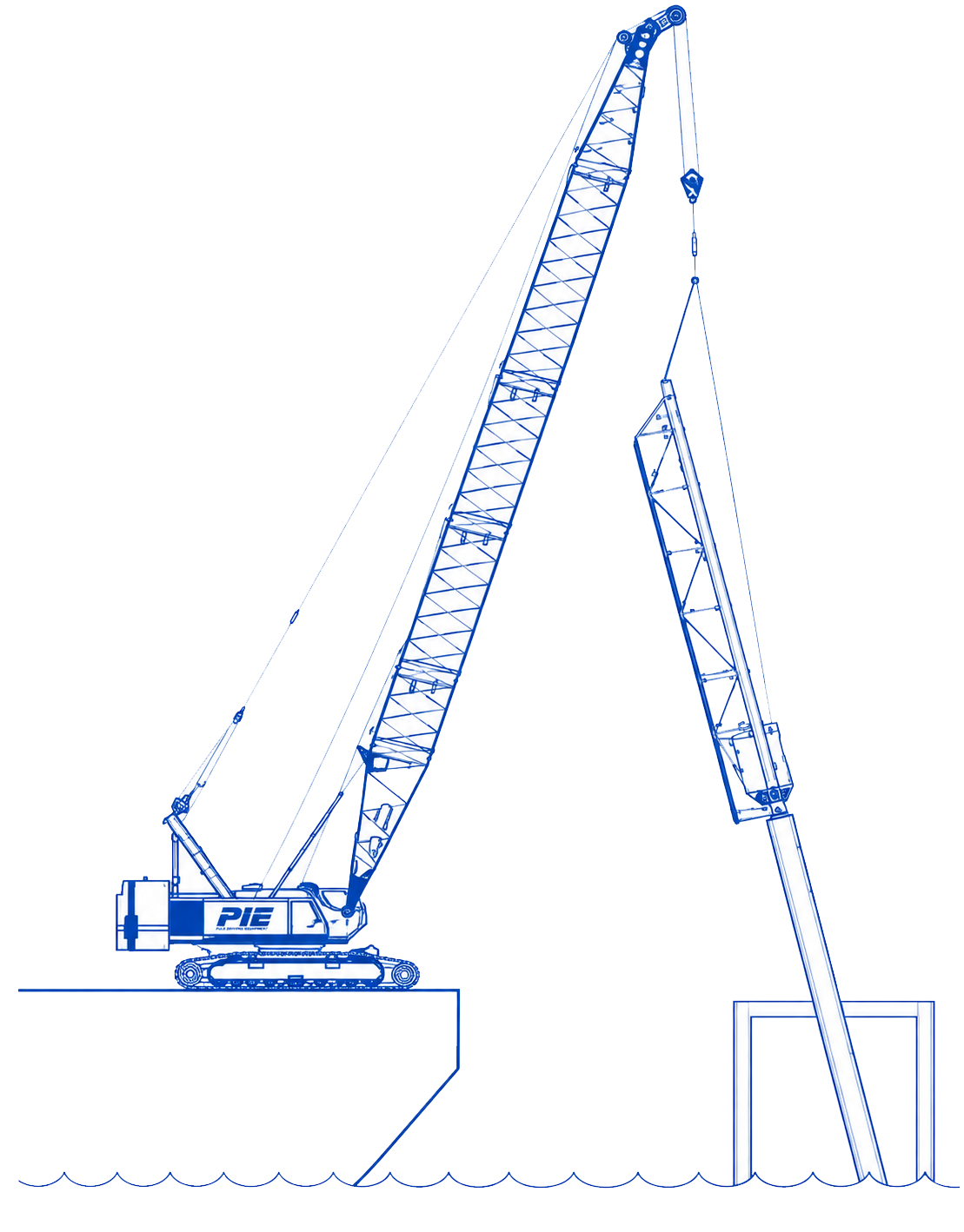

Off-Shore Leads
with Pin-On Removable Bell
| Lead Size | Typical Pile Diameter | Recommended Hammer Range | Approximate Weight | Quote Cart |
|---|---|---|---|---|
| 42" | 20" to 36" diameter | D46 to D70 | 12,800 lb | |
| 48" | 24" to 48" diameter | D80 to D100 | 14,800 lb | |
| 54" | 48" to 72" diameter | D125 to D138 | 17,000 lb | |
| 66" | 48" to 72" diameter | D160+ | 18,500 lb |
42" Offshore Leads
- Typical Pile Diameter
- 20" to 36" diameter
- Recommended Hammer Range
- D46 to D70
- Approximate Weight
- 12,800 lb
48" Offshore Leads
- Typical Pile Diameter
- 24" to 48" diameter
- Recommended Hammer Range
- D80 to D100
- Approximate Weight
- 14,800 lb
54" Offshore Leads
- Typical Pile Diameter
- 48" to 72" diameter
- Recommended Hammer Range
- D125 to D138
- Approximate Weight
- 17,000 lb
66" Offshore Leads
- Typical Pile Diameter
- 48" to 72" diameter
- Recommended Hammer Range
- D160+
- Approximate Weight
- 18,500 lb
