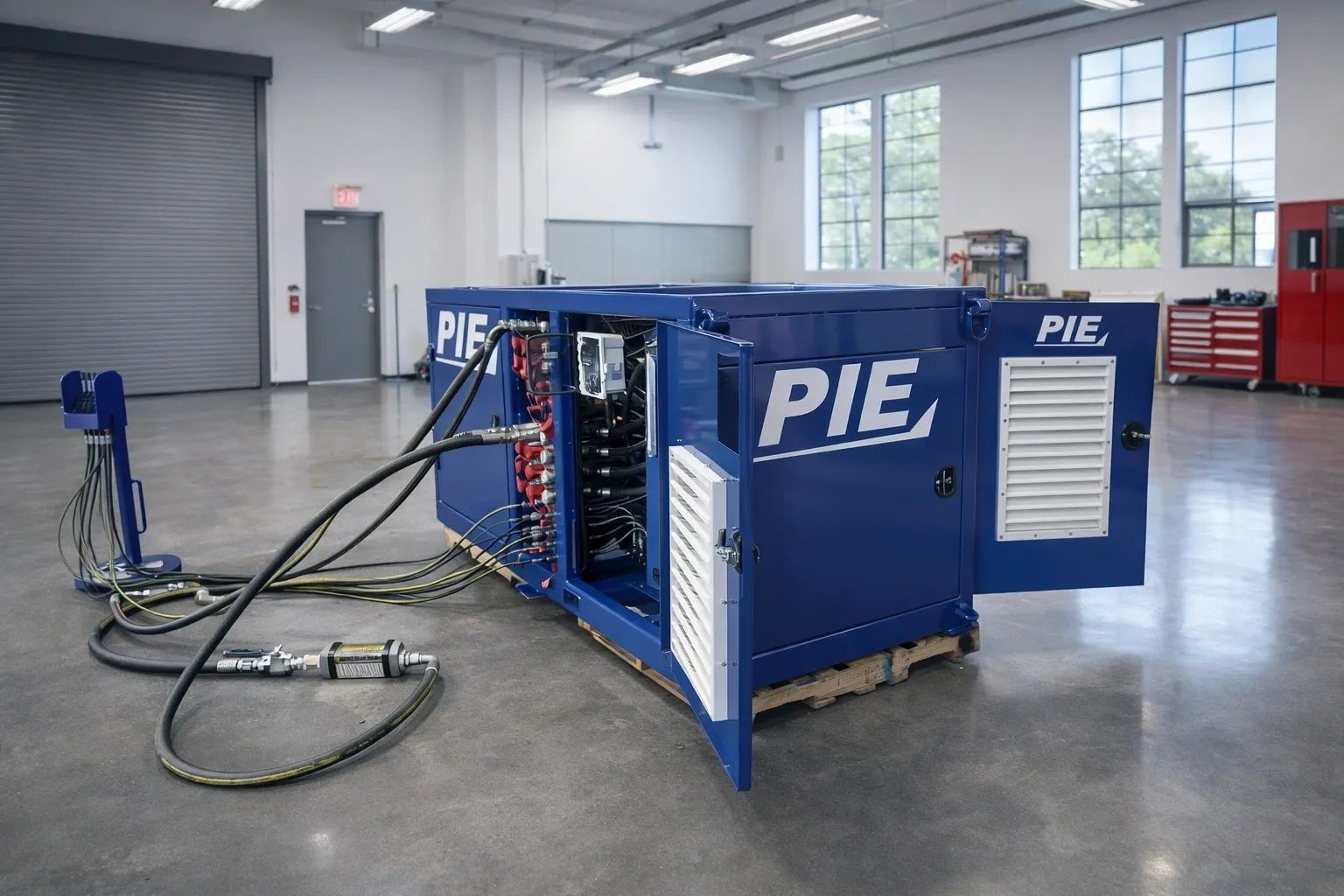

PIE75
One power unit. Multiple barge functions.
- Hydraulic Winches
- Hydraulic Chainsaws
- Hydraulic Diesel Hammer Trip
- Small Drills
- Custom Tools
7 Tools
1 Power Unit
Specifications:
Diesel engineCAT C2.2 Tier 4
Rated power74 HP
Hydraulic circuit 150 GPM @ 2,300 PSI
Hydraulic circuit 225 GPM @ 3,500 PSI
Height46 inches
Width4.5 feet
Length7 feet
Key Feature:

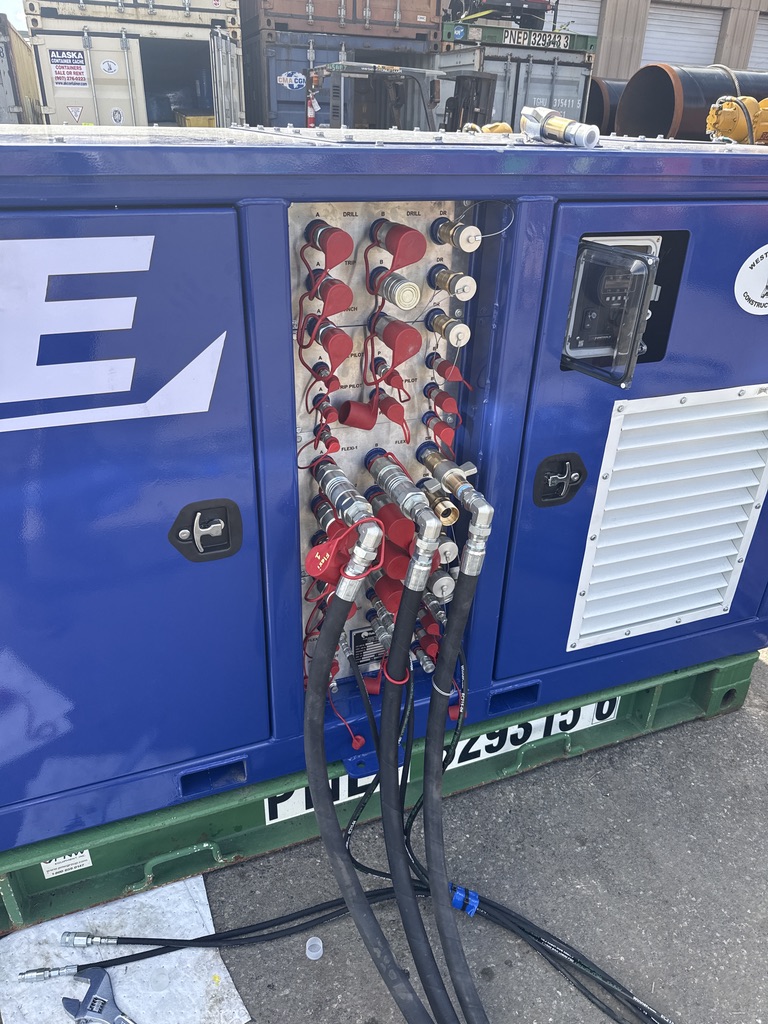

Maximize Barge Space. The compact PIE75 is equipped with seven sets of quick disconnects, allowing up to four winches, a diesel hammer hydraulic trip, a small drill, and a drill winch to remain connected and ready for operation.
Separate high-flow and high-pressure hydraulic circuits expand the unit's versatility, supporting auxiliary equipment such as hydraulic chainsaws, custom cylinders, and other specialized tools—all from one compact power unit.

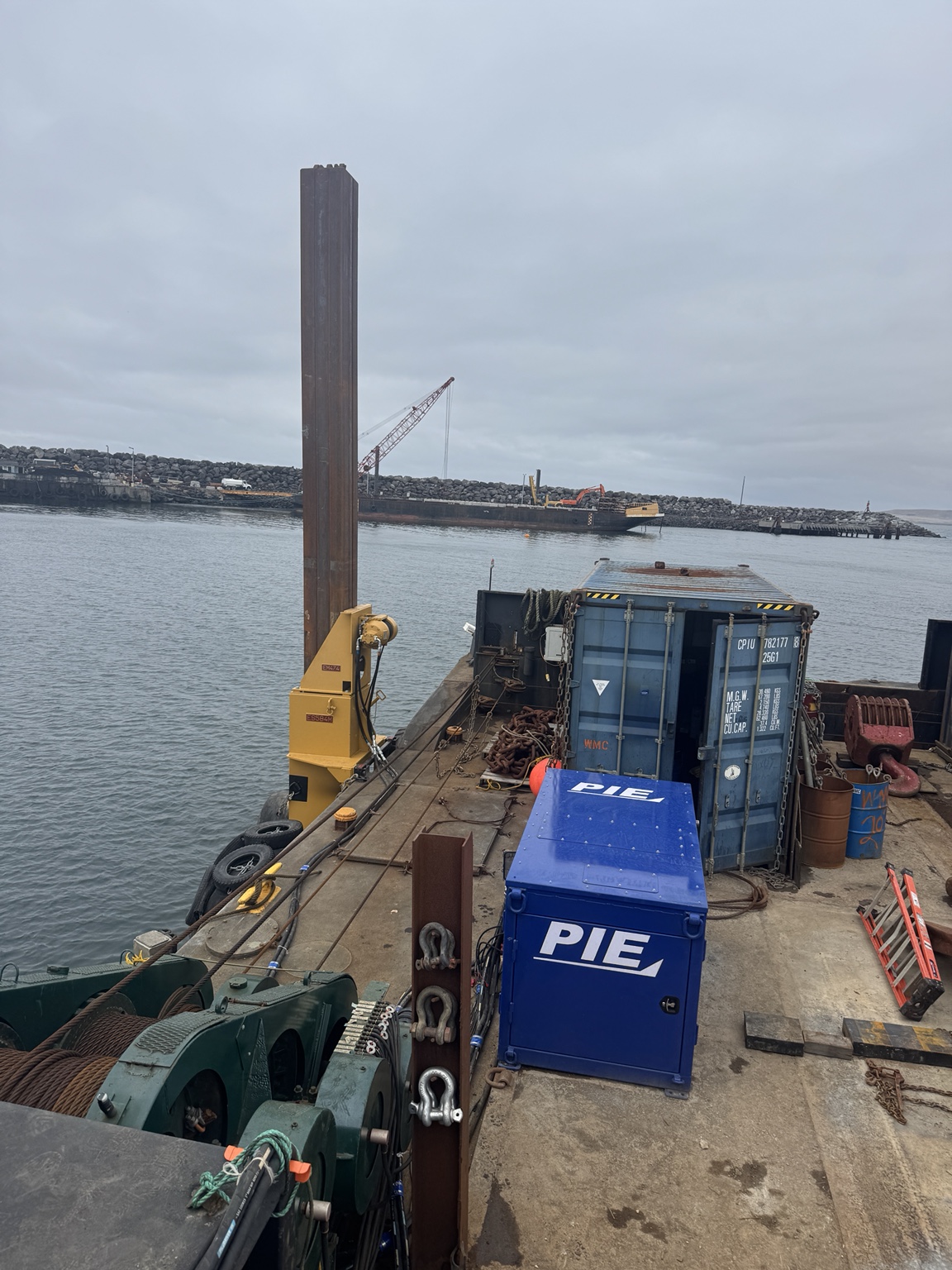

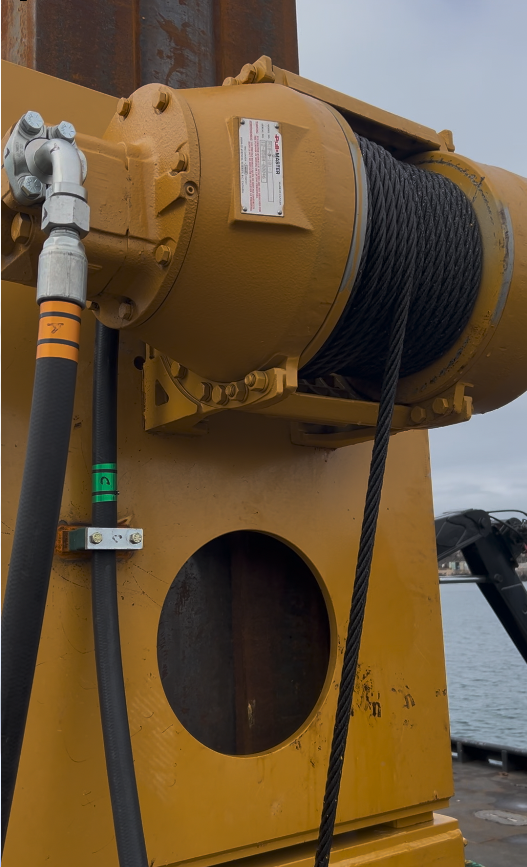

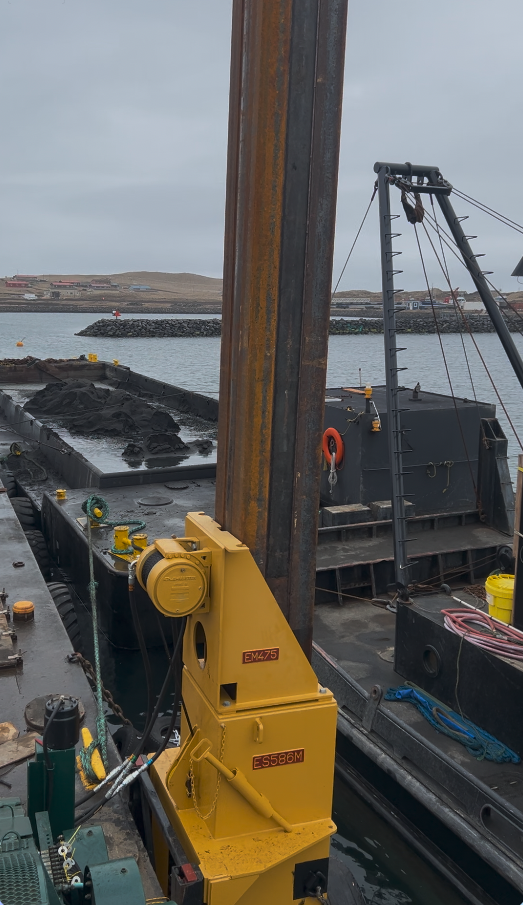

IN THE FIELD
PIE power on the jobsite.

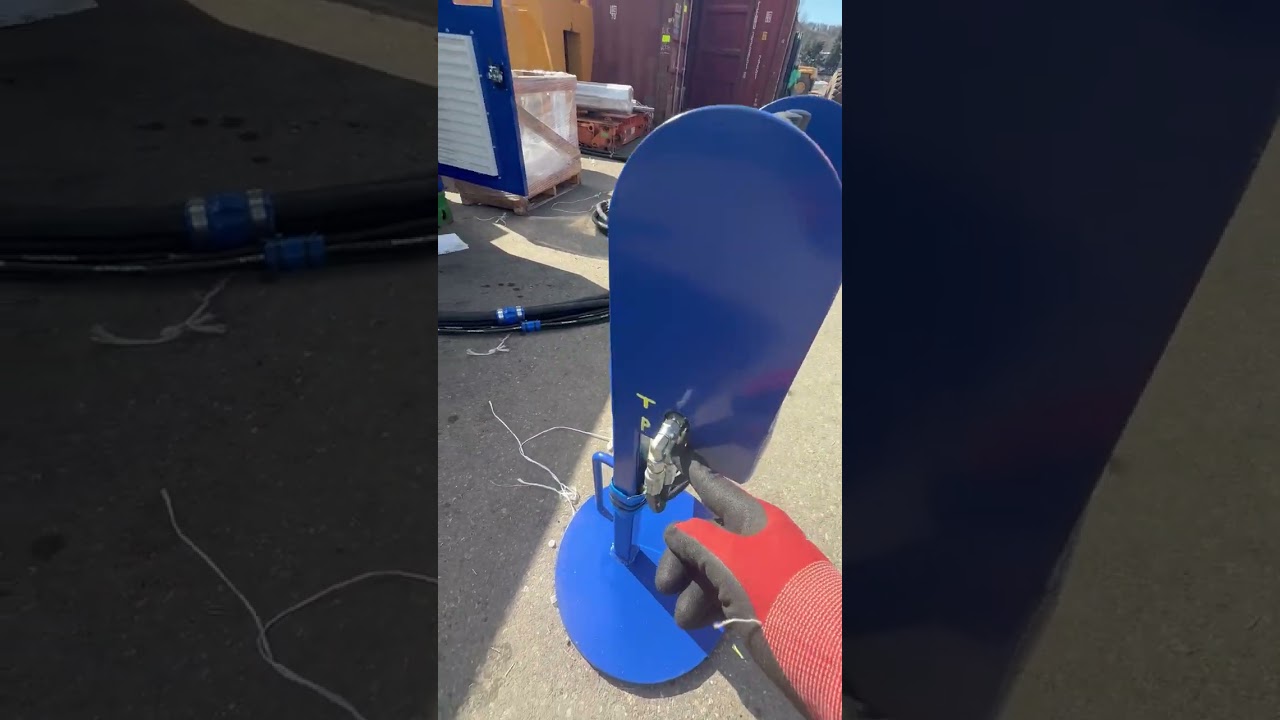

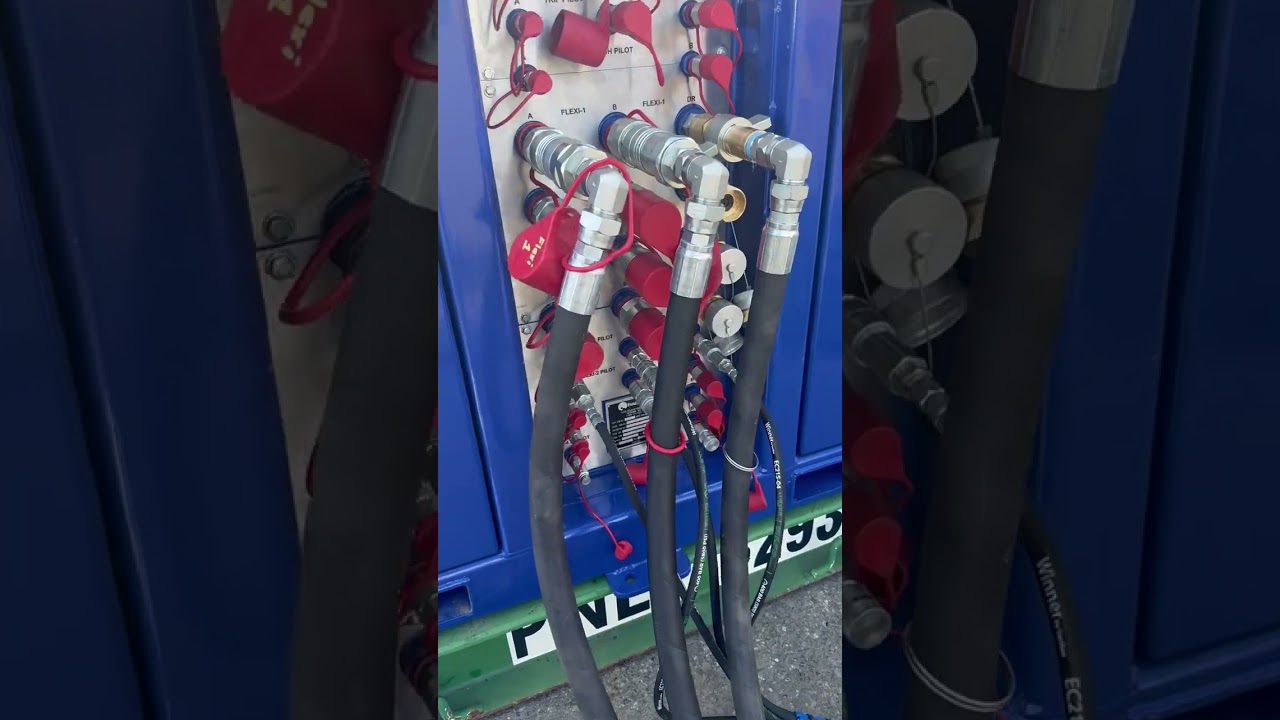

VIDEO TUTORIALS
Operation and setup guidance.
CONFIGURED AROUND YOUR BARGE
Built Around Your Barge. Built Around Your Tools.
PIE designs custom hydraulic power units around the equipment, tools, and operating requirements of your barge.
